springboot终于迎来了2.0版本,很多新的特性让springboot更加强大,之前使用1.5.6版本整合了Mybatis ,现在2.0版本就已经不适用了,所以,在摸索中搭建了2.0版本整合Mybatis
写在前面 本来这篇博文老在就写好了,但是后来发现很多功能其实根本就没有检验通过就发出来了,导致遗留了很多坑,比如最难搞的就是SqlSessionFactory和PageHelper,之前写过关于springboot1.5.6版本的整合,这段时间刚好springboot发布了2.0的正式版本,很多同学可能没有注意版本,导致了整合的时候出现了很多很多的问题,这几天刚好有空就试着整合一下springboot2.0 mybatis,发现了很多很多的坑,而且网上的资源也不多,终于在两天的踩坑中成功整合了,并且将翻页功能修复好了,废话不多说了,看代码:
环境/版本一览:
开发工具:Intellij IDEA 2017.1.3
springboot: 2.0.1.RELEASE
jdk:1.8.0_40
maven:3.3.9
alibaba Druid 数据库连接池:1.1.0
额外功能:

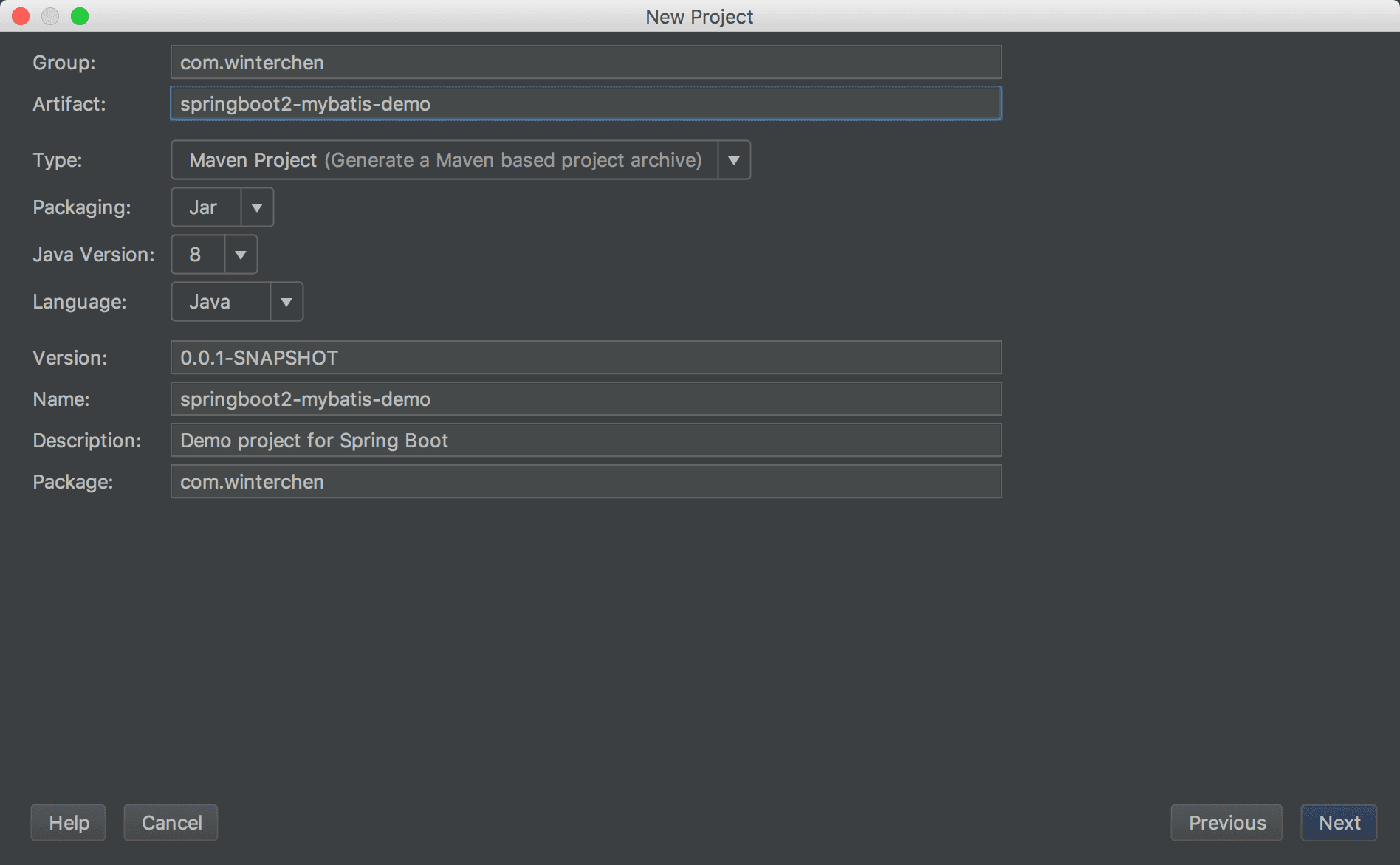

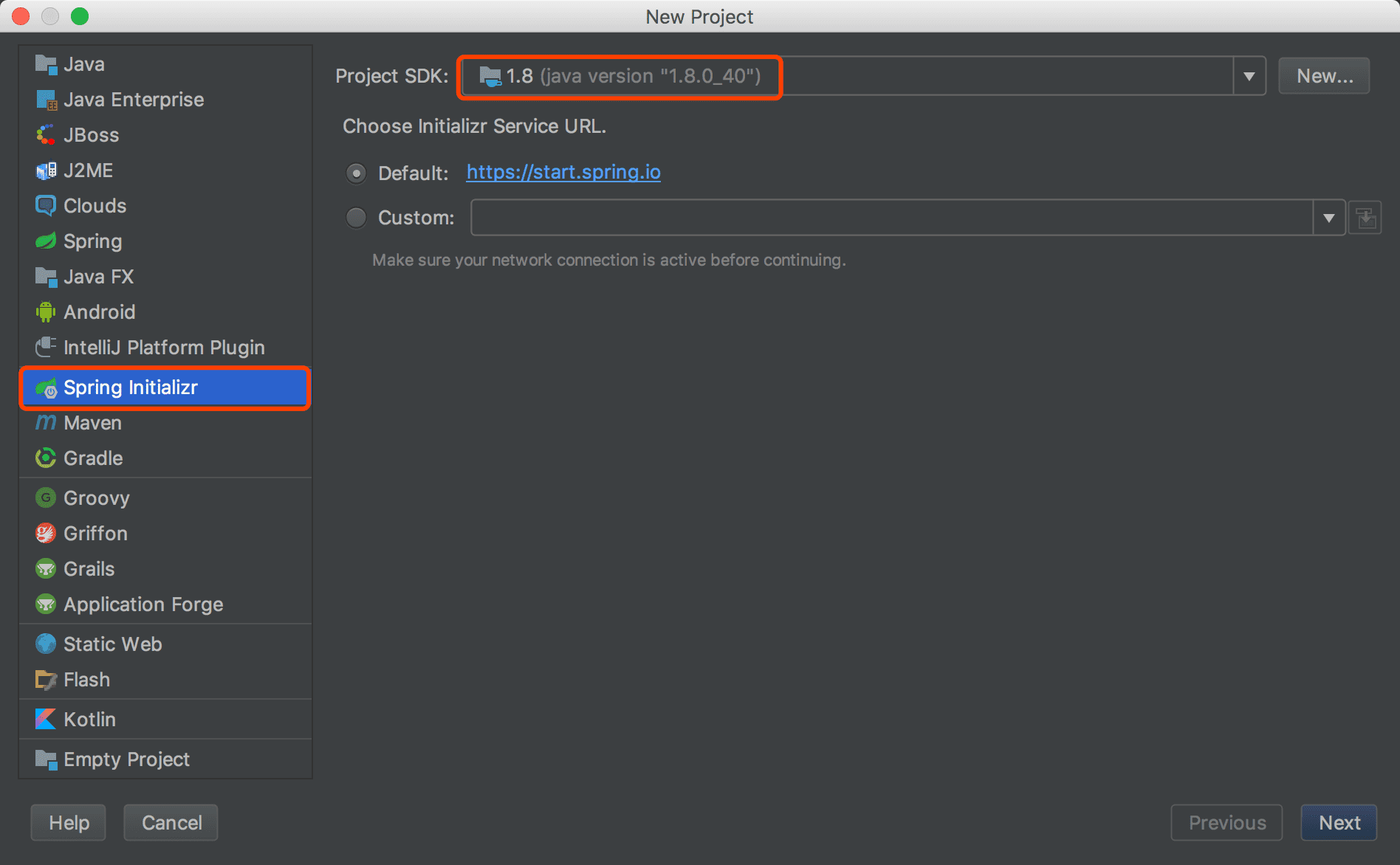

开始搭建: 创建项目:

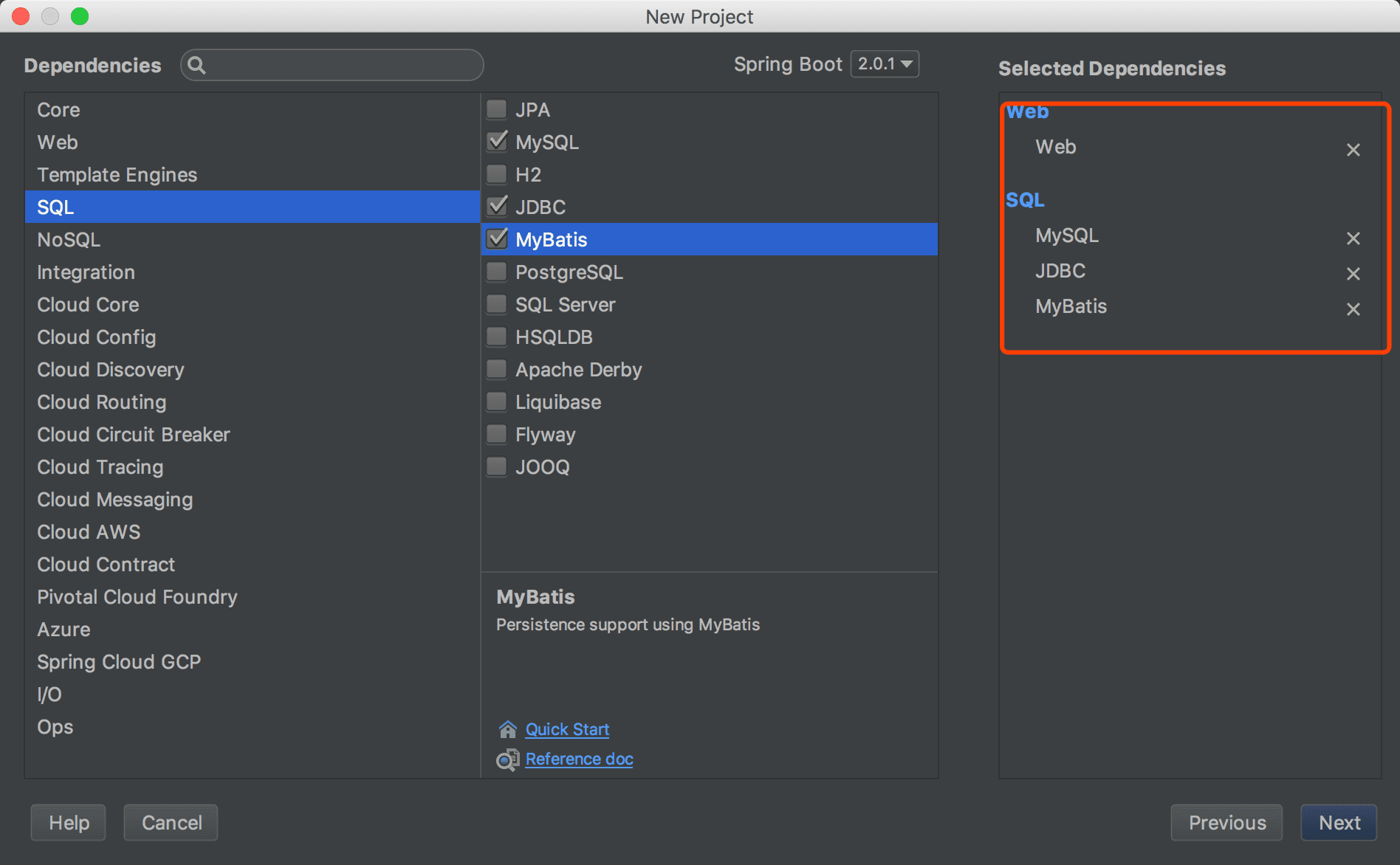

添加基础的依赖:
依赖文件: 按照pom文件补齐需要的依赖:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 <?xml version="1.0" encoding="UTF-8"?> <project xmlns ="http://maven.apache.org/POM/4.0.0" xmlns:xsi ="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation ="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd" > <modelVersion > 4.0.0</modelVersion > <groupId > com.winterchen</groupId > <artifactId > springboot2-mybatis-demo</artifactId > <version > 0.0.1-SNAPSHOT</version > <packaging > jar</packaging > <name > springboot2-mybatis-demo</name > <description > Demo project for Spring Boot</description > <parent > <groupId > org.springframework.boot</groupId > <artifactId > spring-boot-starter-parent</artifactId > <version > 2.0.1.RELEASE</version > <relativePath /> </parent > <properties > <project.build.sourceEncoding > UTF-8</project.build.sourceEncoding > <project.reporting.outputEncoding > UTF-8</project.reporting.outputEncoding > <java.version > 1.8</java.version > </properties > <dependencies > <dependency > <groupId > org.springframework.boot</groupId > <artifactId > spring-boot-starter-web</artifactId > </dependency > <dependency > <groupId > org.mybatis.spring.boot</groupId > <artifactId > mybatis-spring-boot-starter</artifactId > <version > 1.3.2</version > </dependency > <dependency > <groupId > mysql</groupId > <artifactId > mysql-connector-java</artifactId > <scope > runtime</scope > </dependency > <dependency > <groupId > org.springframework.boot</groupId > <artifactId > spring-boot-starter-test</artifactId > <scope > test</scope > </dependency > <dependency > <groupId > org.apache.commons</groupId > <artifactId > commons-lang3</artifactId > <version > 3.4</version > </dependency > <dependency > <groupId > com.fasterxml.jackson.core</groupId > <artifactId > jackson-core</artifactId > </dependency > <dependency > <groupId > com.fasterxml.jackson.core</groupId > <artifactId > jackson-databind</artifactId > </dependency > <dependency > <groupId > com.fasterxml.jackson.datatype</groupId > <artifactId > jackson-datatype-joda</artifactId > </dependency > <dependency > <groupId > com.fasterxml.jackson.module</groupId > <artifactId > jackson-module-parameter-names</artifactId > </dependency > <dependency > <groupId > com.github.pagehelper</groupId > <artifactId > pagehelper</artifactId > <version > 5.1.3</version > </dependency > <dependency > <groupId > com.alibaba</groupId > <artifactId > druid-spring-boot-starter</artifactId > <version > 1.1.0</version > </dependency > </dependencies > <build > <plugins > <plugin > <groupId > org.springframework.boot</groupId > <artifactId > spring-boot-maven-plugin</artifactId > </plugin > </plugins > </build > </project >

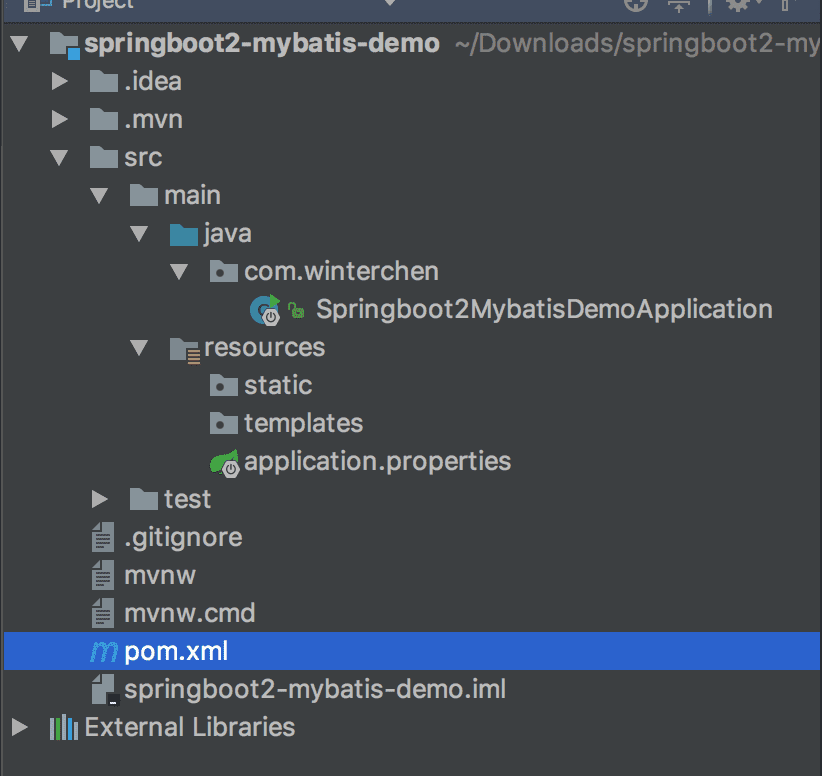

项目结构: 项目结构
项目启动类: 1 2 3 4 5 6 7 8 9 10 11 12 package com.winterchen;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplication public class Springboot2MybatisDemoApplication { public static void main (String[] args) { SpringApplication.run(Springboot2MybatisDemoApplication.class , args ) ; } }
配置:
可以根据个人使用习惯选择使用properties
或者yml
文件,本项目使用的是yml配置文件,所以把原本application.properties
删除,创建一个application.yml
文件
在resource文件夹下创建application.yml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 server: port: 8080 spring: datasource: name: test url: jdbc:mysql://127.0.0.1:3306/mytest?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true username: root password: root type: com.alibaba.druid.pool.DruidDataSource driver-class-name: com.mysql.jdbc.Driver filters: stat maxActive: 20 initialSize: 1 maxWait: 60000 minIdle: 1 timeBetweenEvictionRunsMillis: 60000 minEvictableIdleTimeMillis: 300000 validationQuery: select 'x' testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true maxPoolPreparedStatementPerConnectionSize: 20 maxOpenPreparedStatements: 20 mybatis: mapper-locations: classpath:mapper/*.xml type-aliases-package: com.winterchen.model mapper: mappers: com.winterchen.dao not-empty: false identity: MYSQL pagehelper: helperDialect: mysql reasonable: true supportMethodsArguments: true params: count=countSql returnPageInfo: check
创建包: model
,dao
,mapper
,config
新建配置类: PageHelperConfig.java
以下配置非常的重要,PageHelper
的Page拦截器PageInterceptor
,如果不进行配置,那么分页功能将没有效果
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 package com.winterchen.config;import com.github.pagehelper.PageInterceptor;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import java.util.Properties;@Configuration public class PageHelperConfig { @Value ("${pagehelper.helperDialect}" ) private String helperDialect; @Bean public PageInterceptor pageInterceptor () { PageInterceptor pageInterceptor = new PageInterceptor(); Properties properties = new Properties(); properties.setProperty("helperDialect" , helperDialect); pageInterceptor.setProperties(properties); return pageInterceptor; } }
DataSourceConfig.java
在springboot2.0版本,如果不定义SqlSessionFactory
,那么将会导致错误,因为无法注入SqlSessionFactory
,并且下面注释部分的内容非常的重要,这也是整合当中遇到的很大的坑,如果不将PageInterceptor作为插件设置到SqlSessionFactoryBean中,导致分页失效
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 package com.winterchen.config;import com.github.pagehelper.PageHelper;import com.github.pagehelper.PageInterceptor;import org.apache.ibatis.plugin.Interceptor;import org.apache.ibatis.session.SqlSessionFactory;import org.mybatis.spring.SqlSessionFactoryBean;import org.mybatis.spring.annotation.MapperScan;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.beans.factory.annotation.Qualifier;import org.springframework.boot.autoconfigure.jdbc.DataSourceProperties;import org.springframework.boot.context.properties.ConfigurationProperties;import org.springframework.boot.jdbc.DataSourceBuilder;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.core.env.Environment;import org.springframework.core.io.support.PathMatchingResourcePatternResolver;import org.springframework.transaction.annotation.EnableTransactionManagement;import javax.sql.DataSource;@Configuration @MapperScan ("com.winterchen.dao" )@EnableTransactionManagement public class DataSourceConfig { private static Logger logger = LoggerFactory.getLogger(DataSourceConfig.class ) ; @Autowired private Environment env; @Autowired private PageInterceptor pageInterceptor; @Bean public SqlSessionFactory sqlSessionFactory (DataSource dataSource) throws Exception { SqlSessionFactoryBean fb = new SqlSessionFactoryBean(); fb.setDataSource(dataSource); fb.setPlugins(new Interceptor[]{pageInterceptor}); fb.setTypeAliasesPackage(env.getProperty("mybatis.type-aliases-package" )); fb.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(env.getProperty("mybatis.mapper-locations" ))); return fb.getObject(); } }
DruidDBConfig.java
在Spring Boot1.4.0中驱动配置信息没有问题,但是连接池的配置信息不再支持这里的配置项,即无法通过配置项直接支持相应的连接池;这里列出的这些配置项可以通过定制化DataSource来实现。 目前Spring Boot中默认支持的连接池有dbcp,dbcp2, tomcat, hikari三种连接池。
由于Druid暂时不在Spring Bootz中的直接支持,故需要进行配置信息的定制:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 package com.winterchen.config;import com.alibaba.druid.pool.DruidDataSource;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.context.annotation.Primary;import javax.sql.DataSource;import java.sql.SQLException;@Configuration public class DruidDBConfig { private Logger logger = LoggerFactory.getLogger(DruidDBConfig.class ) ; @Value ("${spring.datasource.url}" ) private String dbUrl; @Value ("${spring.datasource.username}" ) private String username; @Value ("${spring.datasource.password}" ) private String password; @Value ("${spring.datasource.driver-class-name}" ) private String driverClassName; @Value ("${spring.datasource.initialSize}" ) private int initialSize; @Value ("${spring.datasource.minIdle}" ) private int minIdle; @Value ("${spring.datasource.maxActive}" ) private int maxActive; @Value ("${spring.datasource.maxWait}" ) private int maxWait; @Value ("${spring.datasource.timeBetweenEvictionRunsMillis}" ) private int timeBetweenEvictionRunsMillis; @Value ("${spring.datasource.minEvictableIdleTimeMillis}" ) private int minEvictableIdleTimeMillis; @Value ("${spring.datasource.validationQuery}" ) private String validationQuery; @Value ("${spring.datasource.testWhileIdle}" ) private boolean testWhileIdle; @Value ("${spring.datasource.testOnBorrow}" ) private boolean testOnBorrow; @Value ("${spring.datasource.testOnReturn}" ) private boolean testOnReturn; @Value ("${spring.datasource.poolPreparedStatements}" ) private boolean poolPreparedStatements; @Value ("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}" ) private int maxPoolPreparedStatementPerConnectionSize; @Value ("${spring.datasource.filters}" ) private String filters; @Value ("{spring.datasource.connectionProperties}" ) private String connectionProperties; @Bean @Primary public DataSource dataSource () { DruidDataSource datasource = new DruidDataSource(); datasource.setUrl(this .dbUrl); datasource.setUsername(username); datasource.setPassword(password); datasource.setDriverClassName(driverClassName); datasource.setInitialSize(initialSize); datasource.setMinIdle(minIdle); datasource.setMaxActive(maxActive); datasource.setMaxWait(maxWait); datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis); datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis); datasource.setValidationQuery(validationQuery); datasource.setTestWhileIdle(testWhileIdle); datasource.setTestOnBorrow(testOnBorrow); datasource.setTestOnReturn(testOnReturn); datasource.setPoolPreparedStatements(poolPreparedStatements); datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize); try { datasource.setFilters(filters); } catch (SQLException e) { logger.error("druid configuration initialization filter" , e); } datasource.setConnectionProperties(connectionProperties); return datasource; } }
创建数据库和数据表 1 2 3 4 5 6 7 8 CREATE DATABASE mytest;CREATE TABLE t_user( userId INT NOT NULL PRIMARY KEY AUTO_INCREMENT, userName VARCHAR (255 ) NOT NULL , password VARCHAR (255 ) NOT NULL , phone VARCHAR (255 ) NOT NULL ) ENGINE =INNODB AUTO_INCREMENT=1000 DEFAULT CHARSET =utf8;
创建实体类:UserDomain.java
1 2 3 4 5 6 7 8 9 10 11 12 13 package com.winterchen.model;public class UserDomain { private Integer userId; private String userName; private String password; private String phone; }
创建dao: UserDao.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 package com.winterchen.dao;import com.winterchen.model.UserDomain;import org.apache.ibatis.annotations.Mapper;import java.util.List;public interface UserDao { int insert (UserDomain record) ; List<UserDomain> selectUsers () ; }
创建mybatis映射文件: UserMapper.xml
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 <?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" > <mapper namespace ="com.winterchen.dao.UserDao" > <sql id ="BASE_TABLE" > t_user </sql > <sql id ="BASE_COLUMN" > userId,userName,password,phone </sql > <insert id ="insert" parameterType ="com.winterchen.model.UserDomain" > INSERT INTO <include refid ="BASE_TABLE" /> <trim prefix ="(" suffix =")" suffixOverrides ="," > userName,password, <if test ="phone != null" > phone, </if > </trim > <trim prefix ="VALUES(" suffix =")" suffixOverrides ="," > #{userName, jdbcType=VARCHAR},#{password, jdbcType=VARCHAR}, <if test ="phone != null" > #{phone, jdbcType=VARCHAR}, </if > </trim > </insert > <select id ="selectUsers" resultType ="com.winterchen.model.UserDomain" > SELECT <include refid ="BASE_COLUMN" /> FROM <include refid ="BASE_TABLE" /> </select > </mapper >
创建剩余的controller
,service
包和文件 UserService.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 package com.winterchen.service.user;import com.winterchen.model.UserDomain;import java.util.List;public interface UserService { int addUser (UserDomain user) ; List<UserDomain> findAllUser (int pageNum, int pageSize) ; }
UserServiceImpl
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 package com.winterchen.service.user.impl;import com.github.pagehelper.PageHelper;import com.winterchen.dao.UserDao;import com.winterchen.model.UserDomain;import com.winterchen.service.user.UserService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import java.util.List;@Service (value = "userService" )public class UserServiceImpl implements UserService { @Autowired private UserDao userDao; @Override public int addUser (UserDomain user) { return userDao.insert(user); } @Override public List<UserDomain> findAllUser (int pageNum, int pageSize) { PageHelper.startPage(pageNum, pageSize); return userDao.selectUsers(); } }
UserController.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 package com.winterchen.controller;import com.github.pagehelper.PageHelper;import com.winterchen.model.UserDomain;import com.winterchen.service.user.UserService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.*;@Controller @RequestMapping (value = "/user" )public class UserController { @Autowired private UserService userService; @ResponseBody @PostMapping ("/add" ) public int addUser (UserDomain user) { return userService.addUser(user); } @ResponseBody @GetMapping ("/all" ) public Object findAllUser ( @RequestParam(name = "pageNum" , required = false , defaultValue = "1" ) int pageNum, @RequestParam (name = "pageSize" , required = false , defaultValue = "10" ) int pageSize) { PageHelper.startPage(pageNum,pageSize); return userService.findAllUser(pageNum,pageSize); } }
项目最终的结构 项目结构
到这里如果项目就成功搭建完成了,如果还是报错的话,请仔细看看配置,后面会给出源码地址,程序员就是要不断和bug进行斗争,加油。

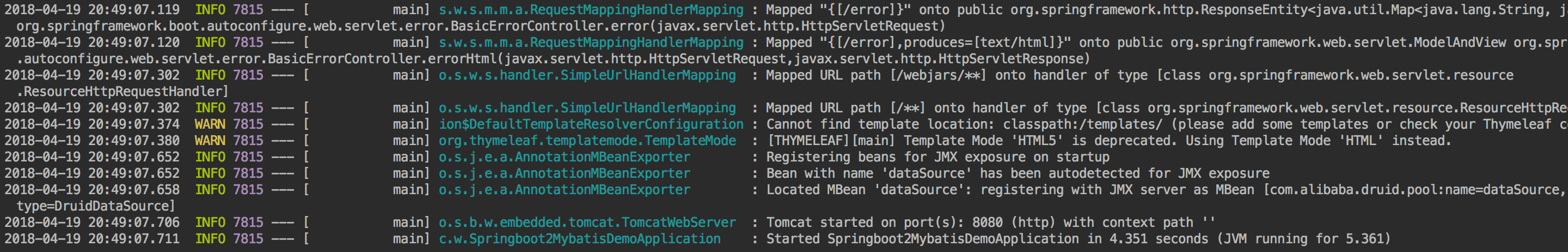

测试 启动项目
启动项目
这样就表示启动成功了
然后,开始测试吧,博主使用的是postMan,一个进行http请求的测试工具
添加数据 添加数据

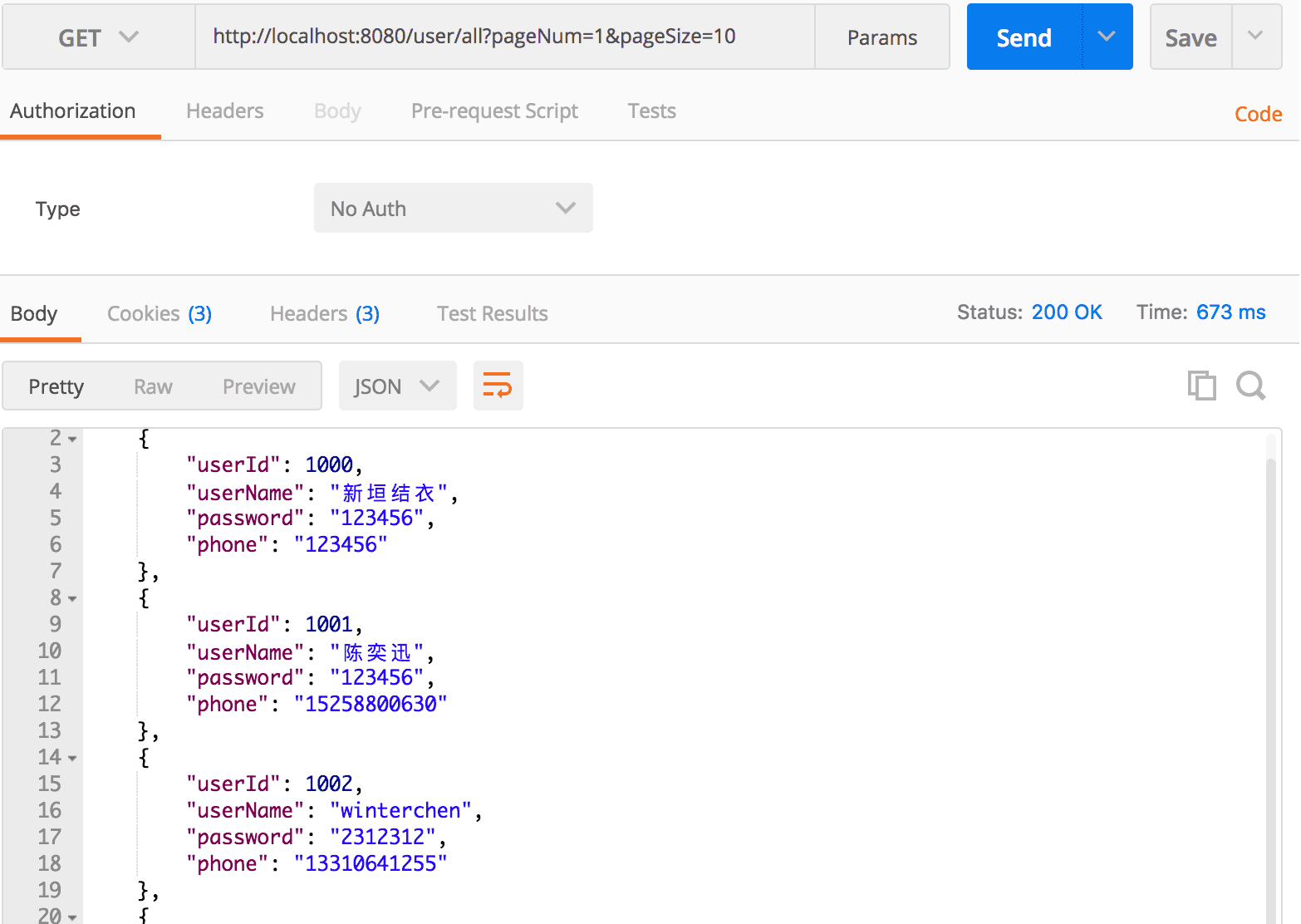

查询数据 查询数据
源码地址:
https://github.com/WinterChenS/springboot2-mybatis-demo
